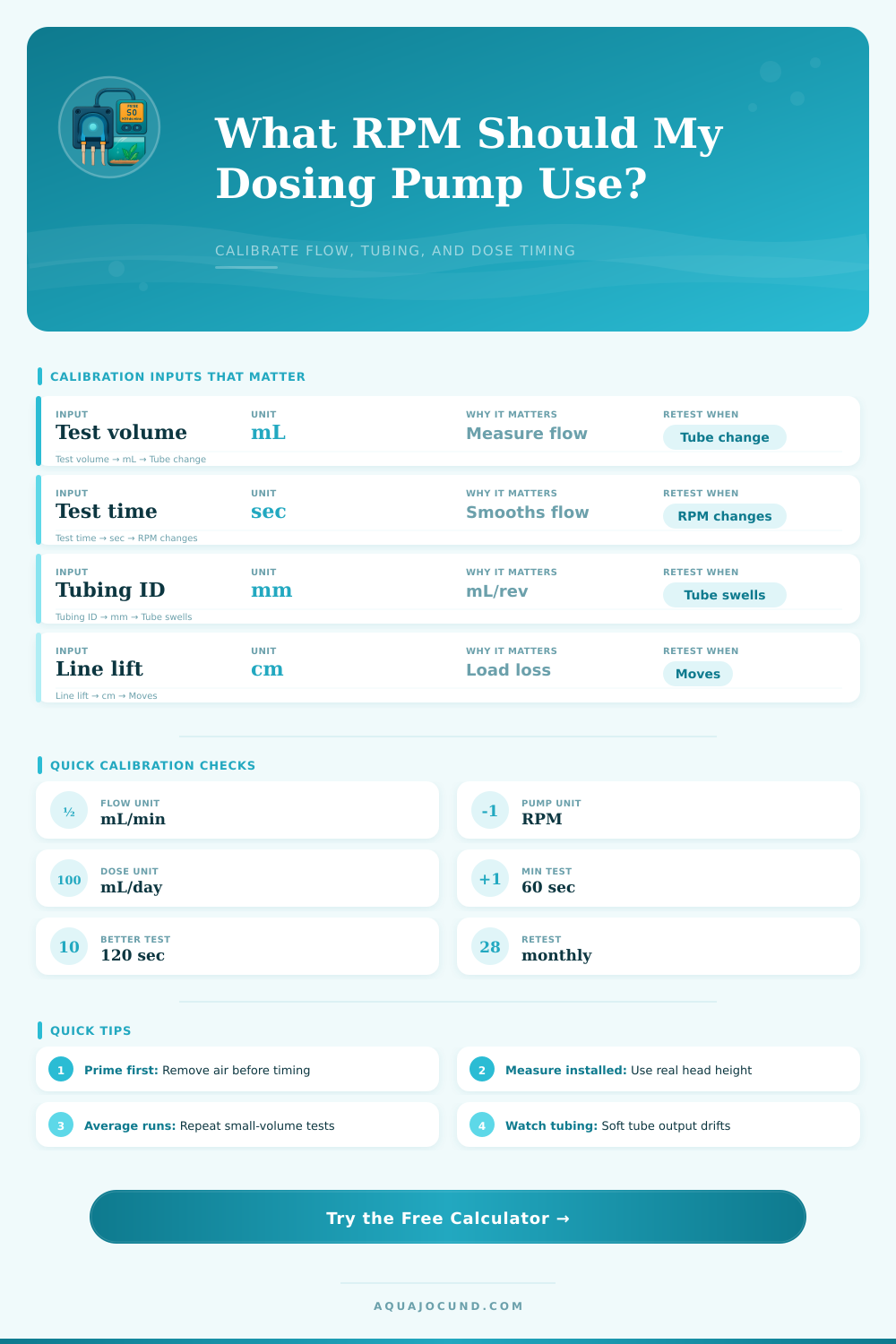

Dosing Pump RPM Calibration Calculator
Convert a measured calibration run into mL/min, mL per revolution, RPM setpoint, dose event timing, tubing correction, and controller adjustment.
🧪Calibration Presets
📐Pump, Tube, and Calibration Run
Dosing Pump Calibration Result
⚙Tubing and Pump Comparison Grid
📊Tubing ID Reference
| Tubing ID | Bore area | Typical dosing use | Calibration note |
|---|---|---|---|
| 1.0 mm | 0.79 mm² | Trace, iodine, amino acid micro dose | Use longer tests to reduce drop error |
| 1.6 mm | 2.01 mm² | Small two-part and trace schedules | Watch restriction from check valves |
| 2.4 mm | 4.52 mm² | Common alkalinity and calcium dosing | Good general reef dosing size |
| 3.2 mm | 8.04 mm² | Medium daily supplements | Shorter events may need slower RPM |
| 4.8 mm | 18.10 mm² | Kalkwasser, top-up, larger reservoirs | Retest after tube compression set |
| 6.4 mm | 32.17 mm² | Auto water change and transfer | Confirm pump can hold prime |
| 8.0 mm | 50.27 mm² | High-flow transfer only | Use spill-safe containers for tests |
🛠Pump Profile Comparison
| Profile | Best RPM range | Repeatability tendency | Use in calculator |
|---|---|---|---|
| 2-roller micro DC | 20 to 120 RPM | More pulsed at very low speed | Higher slip allowance |
| 3-roller stepper | 10 to 180 RPM | Good daily dosing consistency | Balanced default profile |
| 4-roller lab-style | 5 to 250 RPM | Smoother flow per revolution | Lower minimum pulse time |
| Slow reef dosing | 5 to 80 RPM | Good for small frequent events | Conservative RPM limit |
| High-flow transfer | 60 to 350 RPM | Better for larger tubes | More head loss allowance |
| Precision geared | 8 to 160 RPM | Stable output after priming | Small correction allowance |
⏱Calibration Test Length Guide
| Expected flow | Minimum test | Better test | Reason |
|---|---|---|---|
| Under 2 mL/min | 180 sec | 300 sec | Small measuring errors matter more |
| 2 to 10 mL/min | 120 sec | 180 sec | Averages roller pulses well |
| 10 to 40 mL/min | 60 sec | 120 sec | Enough collected volume for accuracy |
| Over 40 mL/min | 30 sec | 60 sec | Prevents overflowing small cylinders |
🧮RPM Curve Interpretation
| Curve point | Formula | What to compare | Action |
|---|---|---|---|
| mL per rev | mL/min divided by RPM | Stable across repeat tests | Average several runs |
| Flow at new RPM | mL/rev multiplied by RPM | Linear until tube slip rises | Retest far from calibration RPM |
| Event runtime | Target mL divided by flow | Above pump minimum pulse time | Increase events or lower RPM |
| Volume correction | Theoretical divided by measured | Controller assumed output | Multiply programmed volume |
Now it’s go time. Set the timer, drop some stuff in your measuring cup, and hope math comes up right. That’s the defining moment of your hobbyist chemistry. Either everything holds together or it doesn’t.
Moving the liquid from Point A to B isn’t enough. You have to know exactly how much arrived. The calculator do all the tricky math for you. It takes a nasty physical test and spits out an RPM target and clean correction factor. But why that number? Why does that matter? If you want your water stay stable, you gotta understand why.
Why You Must Calibrate Your Dosing Pump
Most folks think that if controller reads X, they is getting X from their dosing pump. They’re not. How does a peristaltic pump work? It squeezes tube against some rollers. Each time that tube gets squeezed, there’s a slight change in shape. That change vary by tubing brand, temperature and how old that tubing is. New tubing may provides 90% of what you’d theoreticaly expect. Then six months later it’s stretched out and slipping inside itself. You have lost flow and not touched anything on your screen.
That’s where the calibration run come into play. You measure how much fluid comes out over a set amount of time at specific RPM. That volume, combined with geometry of the tubes in your system, gets fed to the tool, which divides that value by what it should of been. The outcome? A correction factor. If your pump isn’t delivering as much than you think, it might be delivering a fraction of what it should, for example. The calculator compensates for this so you still recieve the full dose. It is small but it matters. Otherwise, you’re blindly dosing according to manufacturers’ specs while ignoring your own setup.
The other thing that people don’t consider enough are the size of the tubing. The smaller the inside diameter, the less liquid it can hold during each rotation. Sounds good right? Until you look at number of pulses per second. For example, if it’s a small tube, the pump may need to turn faster to get enough liquid with every pulse. That means more wear on the tubing over time and also more heat caused by friction. Large tubing gives you slower RPM and therefore longer tube life; but because there is more water in play, you will go through more volume per pulse. It’s all about balancing longevity vs precision. The table on this page provides a guide to what common situations is like based off bore area.
Accuracy suffers from vertical lift too. More head mean more back pressure. That’s more load on the pump motor when lifting solution a hundred centimeters vs twenty. Under high viscosity conditions, that can be enough to cut flow rate ever so slightly. That resistance adds up if you’re moving fluid across a long room or dosing thick calcium mixes. Enter viscosity restrictions and additional line lift into the calculator to take these factors into account. It won’t save a failing pump but it will tell you if your setup is pushing the limits of what the motor can handle reliablly.
Here’s where theory and reality meet in terms of event timing. The math may say you require four mils per day; however, the system doesn’t like being shocked with that much all at once. Instead, the solution are to break it down into 12 events, which means every dose is tiny. The tool calculates the run time for each event based off the flow rate and number of events. It also know the lowest pulse capacity of the pump. As such, if the calculated run time for any one event fall below the pump’s lowest pulse capacity, then you’re getting zero, or; a huge overshoot. That’s what the tool tests when comparing the programmed RPM to max run time. If they don’t match, then it’ll recommend slowing the rotation or changing the frequency.
Test it again. And test it again. And retest. Adjust the reservoir position and test. Replace the tube and test. Heck, even give it three months and go back to check it. Nothing stays the same. Your equipment and water chemistry won’t either. Perfect precision second by second isn’t necessary. Predictable consistency month after month. You can count on a system instead of worrying about it. Once you dial it in with measured data instead of guesses, it’s on autopilot and you don’t think about it anymore. You trust the routine and stop worrying about drift. You know exactly what went in the cup at the start, so that’s confidence.
